Re: Fw: [pgadmin-support] No high resolution support in Windows

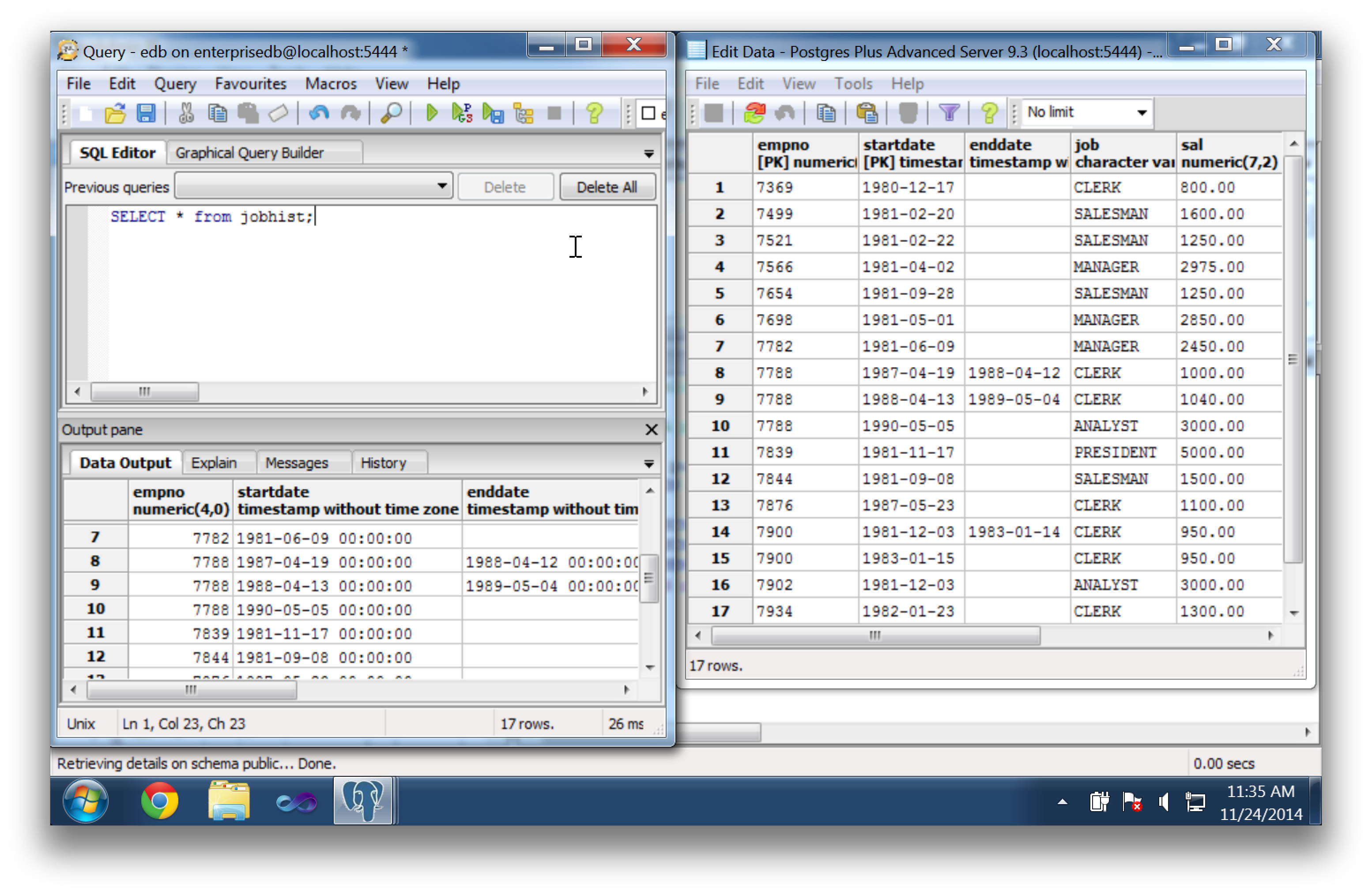

Forgot to attach the screenshot of SQL Data output vs Edit Data grid. Same
result I have observed after applying the patch.

On Mon, Nov 24, 2014 at 12:07 PM, Akshay Joshi <
akshay(dot)joshi(at)enterprisedb(dot)com> wrote:

> Hi Dave
>
> This issue is not reproducible on my Windows 7 64 bit machine. I have
> applied the patch and the result is same.
>
> On Sun, Nov 23, 2014 at 11:14 PM, Akshay Joshi <
> akshay(dot)joshi(at)enterprisedb(dot)com> wrote:
>
>>
>>
>> On Fri, Nov 21, 2014 at 8:06 PM, Dave Page <dpage(at)pgadmin(dot)org> wrote:
>>
>>> Akshay, please look into this ASAP.
>>>
>>
>> Sure Dave.
>>
>>>
>>> Thanks.
>>>
>>> On Fri, Nov 21, 2014 at 2:29 PM, <vladnc(at)gmail(dot)com> wrote:
>>> > About a month ago I created this patch for Windows and sent it to the
>>> > pg-admin support list, but received no reply.
>>> >
>>> > Today another user complains about similar issues on Linux.
>>> >
>>> > Maybe my patch could be adapted to fix both issues.
>>> >
>>> > Thanks,
>>> > Sent from Windows Mail
>>> >
>>> > From: Vladimir Nicolici
>>> > Sent: ‎Saturday‎, ‎25‎ ‎October‎, ‎2014 ‎19‎:‎37
>>> >
>>> > To: Guillaume Lelarge
>>> > Cc: pgadmin-support(at)postgresql(dot)org
>>> >
>>> > BTW, i found another related bug:
>>> >
>>> > If you resize a row manually, then you try to zoom in/out using the
>>> mouse
>>> > wheel, the text size changes, but the row height no longer changes.
>>> >
>>> > I think that is because the default value for the resizeExistingRows
>>> > parameter of the SetDefaultRowSize method is “false”, and once you
>>> make a
>>> > manual change the defaults no longer apply automatically.
>>> >
>>> > Attached a new version of my patch, that attempts to fix that too.
>>> >
>>> > Sent from Windows Mail
>>> >
>>> > From: Vladimir Nicolici
>>> > Sent: ‎Saturday‎, ‎25‎ ‎October‎, ‎2014 ‎16‎:‎54
>>> > To: Guillaume Lelarge
>>> > Cc: pgadmin-support(at)postgresql(dot)org
>>> >
>>> > Found the reason the “Edit” grid looks better, rows have 2 more pixels.
>>> >
>>> > in frmEditGrid.cpp:
>>> >
>>> > #ifdef __WXMSW__
>>> > sqlGrid->SetDefaultRowSize(sqlGrid->GetDefaultRowSize() + 2, true);
>>> > #endif
>>> >
>>> > The commit comment is:
>>> >
>>> > commit ec4098968604f0acd3ef34fad56afb63b9add062
>>> >
>>> > Author: Steffen Kuhn <pg(at)kuhnsteffen(dot)de> 2010-09-02 19:15:35
>>> >
>>> > Committer: Guillaume Lelarge <guillaume(at)lelarge(dot)info> 2010-09-02
>>> 19:18:03
>>> >
>>> > Fix an issue when editing date value in frmEditGrid
>>> >
>>> > There was a bug which makes the date value invisible. Adding two
>>> pixels to
>>> > the
>>> >
>>> > height of the widget fixes that.
>>> >
>>> > Patch from Steffen Kuhn.
>>> >
>>> >
>>> > A quick and safe fix would be to move that code to ctlSqlGrid.cpp,
>>> after the
>>> > “ SetDefaultRowSize(fntCells.GetPointSize() * 2);” lines in both the
>>> > constructor and the OnMouseWheel method, making the frmEditGrid and
>>> frmQuery
>>> > grids look the same.
>>> >
>>> > The only potentially negative side effect is that, depending on the
>>> font
>>> > settings, about 10% less rows will fit on the screen in the query
>>> result.
>>> >
>>> > BTW, nice undocumented feature, being able to zoom in/out with
>>> [Control] +
>>> > [Mouse Wheel]. Not that I would read the documentation anyway. Funny
>>> that I
>>> > discovered that reading the source code. This shows the truth of
>>> Robert C.
>>> > Martin’s quote: “Truth can only be found in one place: the code.”
>>> >
>>> > Probably it would be better to have zoom in/out buttons on the
>>> toolbar, with
>>> > a hover tooltip “you can also use control+mouse wheel to zoom” to make
>>> it
>>> > more discoverable. But I digress.
>>> >
>>> > Another issue is that the code for mouse wheel zoom doesn’t to take
>>> into
>>> > account those additional 2 pixels for edit grids, and after scrolling
>>> in/out
>>> > those two pixels are lost, so the edit grid looks just as bad as the
>>> SQL
>>> > results grid, and probably the bug fixed by that patch resurfaces.
>>> Moving
>>> > that code as I recommended will also fix this.
>>> >
>>> > Digging some more and playing with the zoom in/out feature, I noticed
>>> that
>>> > the row labels are not affected by this issue, and look fine for both
>>> query
>>> > grids and edit grids, at all zoom levels.
>>> >
>>> > Looking at the wxwidgets source code, the default cell alignment is:
>>> >
>>> > m_defaultCellAttr->SetAlignment(wxALIGN_LEFT, wxALIGN_TOP);
>>> >
>>> > and the default row label alignment is:
>>> >
>>> > m_rowLabelVertAlign = wxALIGN_CENTRE;
>>> >
>>> > This seems to fix the issue for the row labels.
>>> >
>>> > So, in addition to moving that code, I think this should be added:
>>> >
>>> > SetDefaultCellAlignment(wxALIGN_LEFT, wxALIGN_CENTER);
>>> >
>>> > under
>>> >
>>> > SetColLabelAlignment(wxALIGN_LEFT, wxALIGN_CENTER);
>>> >
>>> > in ctlSqlGrid.cpp . Maybe enclosed in a #ifdef __WXMSW__, if you don’t
>>> want
>>> > this on other operating systems, although it should be fine.
>>> >
>>> > Also, since we’re here, the column headers are affected by the same
>>> issue,
>>> > and need about 4 more pixels for the two rows, something like this:
>>> >
>>> > #ifdef __WXMSW__
>>> > SetDefaultRowSize(GetDefaultRowSize() + 2);
>>> > SetColLabelSize(GetColLabelSize() + 4);
>>> > #endif
>>> >
>>> > Anyway, I attached a patch.
>>> >
>>> > While I tried to be very careful and I’m quite confident it will work
>>> and
>>> > fix the issues, it’s not tested in any way, it may not even compile,
>>> since I
>>> > usually work with Java and I don’t have a C++ development environment.
>>> >
>>> > Sent from Windows Mail
>>> >
>>> > From: Vladimir Nicolici
>>> > Sent: ‎Sunday‎, ‎19‎ ‎October‎, ‎2014 ‎15‎:‎40
>>> > To: Guillaume Lelarge
>>> > Cc: pgadmin-support(at)postgresql(dot)org
>>> >
>>> > Is there any way to increase the default row height in SQL Data Output
>>> > grids? Because grids having rows that are too narrow to show the text
>>> > properly is the only annoying thing when I disable high resolution
>>> scaling
>>> > for pgAdmin.
>>> >
>>> > The “Edit Data” grids look much better because the rows are a few
>>> pixels
>>> > taller, for some reason. They still truncate a few pixels from the
>>> bottom of
>>> > the content, but it’s acceptable.
>>> >
>>> > SQL Data Output vs Edit Data grids with high resolution scaling
>>> disabled:
>>> > http://i.imgur.com/yyLcFYE.png
>>> >
>>> > And for that matter, unrelated to the resolution issues, is there a
>>> way to
>>> > increase the default column width? I hate having to resize each column,
>>> > especially when the grid has many columns, because by default they are
>>> not
>>> > wide enough in most cases:
>>> >
>>> > http://i.imgur.com/ewSW8kP.png
>>> >
>>> > Sent from Windows Mail
>>> >
>>> > From: Guillaume Lelarge
>>> > Sent: ‎Wednesday‎, ‎1‎ ‎October‎, ‎2014 ‎14‎:‎44
>>> > To: Vladimir Nicolici
>>> > Cc: pgadmin-support(at)postgresql(dot)org
>>> >
>>> > Hi,
>>> >
>>> > Le 26 sept. 2014 16:33, <vladnc(at)gmail(dot)com> a écrit :
>>> >>
>>> >> pgAdmin Version: 1.18.1
>>> >>
>>> >> OS: Microsoft Windows [Version 6.3.9600] (8.1 Pro 64 bit)
>>> >>
>>> >> 1. Use Control Panel\Appearance and Personalisation\Display to set a
>>> high
>>> >> dpi:
>>> >>
>>> >> http://i.imgur.com/WQJmlWe.png
>>> >>
>>> >> 2. Logout/login again to make sure the changes are fully applied.
>>> >>
>>> >> 3. Open pgAdmin
>>> >>
>>> >> Result - pgAdmin is very blury, because it doesn’t support high DPIs
>>> and
>>> >> is up-scaled by Windows:
>>> >>
>>> >> http://i.imgur.com/0L8l3Yh.png
>>> >>
>>> >> http://i.imgur.com/fBV09X5.png
>>> >>
>>> >> Disabling scaling for the application resulted in even worse behavior,
>>> >> like overlapping UI elements, because some of them were resized and
>>> some
>>> >> not.
>>> >>
>>> >
>>> > Well, yeah, PgAdmin is not fully compatible with high DPI display. We
>>> need
>>> > to provide icons with better resolution. And we need a fully compatible
>>> > wxwidgets library. As far as I can tell, it isn't, at least on
>>> windows. Mac
>>> > os x retinas displays seem to work fine though.
>>> >
>>> >
>>> >
>>> > --
>>> > Sent via pgadmin-hackers mailing list (pgadmin-hackers(at)postgresql(dot)org)
>>> > To make changes to your subscription:
>>> > http://www.postgresql.org/mailpref/pgadmin-hackers
>>> >
>>>
>>>
>>>
>>> --
