Hi,

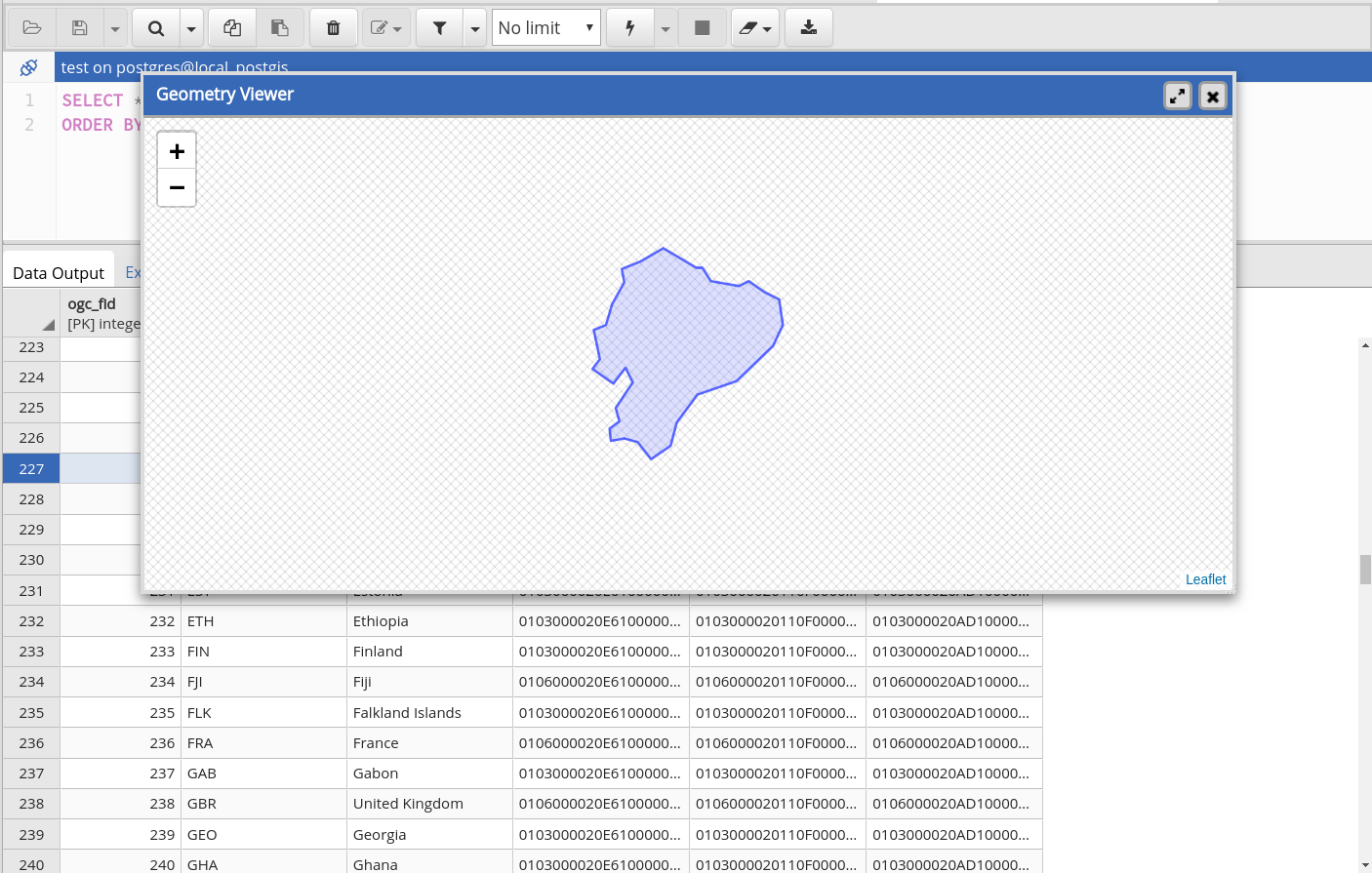

I have updated the geometry viewer:
- Increase geometry column width.
- Remove per-row buttons and just display the row(s) that are selected.
- Change the viewer panel to regular dialogue.
- Update documents and libraries.txt file.
Attached are the patch and screenshots. Please review it. Thank you.
Xuri Gong <xurigoong(at)gmail(dot)com> 于2018年8月11日周六 下午9:23写道:
> Hi Dave and Khushboo,
>
> Thank you very much for the suggestions and instructions. I will do that
> and send the new patch soon.
>
> Khushboo Vashi <khushboo(dot)vashi(at)enterprisedb(dot)com> 于2018年8月10日周五 下午1:15写道:
>
>> Hi Xuri,
>>
>> On Thu, Aug 9, 2018 at 3:52 PM, Dave Page <dpage(at)pgadmin(dot)org> wrote:
>>
>>> Hi
>>>
>>> On Wed, Aug 8, 2018 at 5:32 PM, Xuri Gong <xurigoong(at)gmail(dot)com> wrote:
>>>
>>>> Hi Dave
>>>>
>>>> Thanks for your feedback!
>>>>
>>>> 1) The column headers should be resized to take into account the button
>>>>> size. It looks a little weird when they obscure the text.
>>>>>
>>>> I will resize the column and update the code style.
>>>>
>>>
>>> Thanks.
>>>
>>>
>>>>
>>>> 2) It would be good to be able to select a subset of rows. The grid
>>>>> already supports this... I'd suggest that the header button should display
>>>>> only the row(s) that are currently selected. That would also allow the
>>>>> removal of the per-row buttons.
>>>>>
>>>> Thanks for your nice idea! This can be implemented without much change
>>>> in the current code. I am wondering if it is intuitive enough for users to
>>>> firstly select row(s) and then click the column header button. What do you
>>>> think?
>>>>
>>>
>>> I think it will be. It's exactly how other operations work (e.g. Copy).
>>> They affect the whole grid, unless a subset is selected in which case they
>>> only affect that subset.
>>>
>>>
>>>>
>>>> 3) Can the panel be made into a regular dialogue, with a close button
>>>>> and ability to resize and move it?
>>>>
>>>> Now the viewer can be resized by dragging the bottom right corner and
>>>> it can't be moved. I tried adding frame but found it look not good(see the
>>>> attached screenshot).
>>>>
>>>
>>> Hmm. I think that is an improvement, but it needs to lose the
>>> status/button bar at the bottom and render the map over the entire canvas
>>> except the title bar. Oh, and of course, making it movable is important so
>>> users can resize and move it so they can see other things underneath it.
>>>
>>> Khushboo/Aditya - you've worked with the dialogues much more recently
>>> than I; can you give Xuri some pointers on how to do the above?
>>>
>>> To make the Alertify dialogue movable you can set movable to true in the
>> options of the setup function of Alertify.
>> For changing the footer, you can use this.elements.footer in the build
>> function which will give you the footer div. So you can apply the css to
>> hide it.
>>
>> To change the size of the dialogue, resizeTo function is available. So
>> instead of writing elements.dialogue.style.height / weight, you can use
>> this function also.
>>
>> Whenever we introduce a new JS library, we maintain the list in
>> libraries.txt file. So you need to add the 'wkx' library to this file.
>>
>> Please let me know if you have any doubts.
>>
>> Thanks,
>> Khushboo
>>
>>> Thanks!
>>>
>>>
>>>>
>>>>
>>>> Dave Page <dpage(at)pgadmin(dot)org> 于2018年8月7日周二 下午11:41写道:
>>>>
>>>>> Hi
>>>>>
>>>>> On Sat, Aug 4, 2018 at 1:27 PM, Xuri Gong <xurigoong(at)gmail(dot)com> wrote:
>>>>>
>>>>>> Hi,
>>>>>>
>>>>>> I have added documents for geometry viewer. Please review this newer
>>>>>> patch.
>>>>>>
>>>>>> For test you can install PostGIS and import this database[1].
>>>>>>
>>>>>> Thank you!
>>>>>>
>>>>>> [1]
>>>>>> https://drive.google.com/open?id=1NHWW4WPli7kxpuGaDFGVFLDXdc2D20wp
>>>>>>
>>>>>
>>>>> I finally got a chance to play with this! It's pretty awesome - I
>>>>> think some tweaks are needed to polish it off though:
>>>>>
>>>>> 1) The column headers should be resized to take into account the
>>>>> button size. It looks a little weird when they obscure the text.
>>>>>
>>>>> 2) It would be good to be able to select a subset of rows. The grid
>>>>> already supports this... I'd suggest that the header button should display
>>>>> only the row(s) that are currently selected. That would also allow the
>>>>> removal of the per-row buttons.
>>>>>
>>>>> 3) Can the panel be made into a regular dialogue, with a close button
>>>>> and ability to resize and move it?
>>>>>
>>>>> I haven't looked at the code in any great depth due to time
>>>>> constraints, but I didn't see anything particularly untoward except some of
>>>>> the formatting; for example:
>>>>>
>>>>> if(command === 'view-all-geometries'){
>>>>> ...
>>>>> }else{
>>>>>
>>>>> Should look more like:
>>>>>
>>>>> if (command === 'view-all-geometries') {
>>>>> ...
>>>>> } else {
>>>>>
>>>>> Thanks - that's good work!
>>>>>
>>>>>
>>>>>>
>>>>>> Xuri Gong <xurigoong(at)gmail(dot)com> 于2018年7月31日周二 下午4:47写道:
>>>>>>
>>>>>>> Hi,
>>>>>>>
>>>>>>> This is the patch for viewing geometry data in pgAdmin4. I have
>>>>>>> implemented it as follows:
>>>>>>>

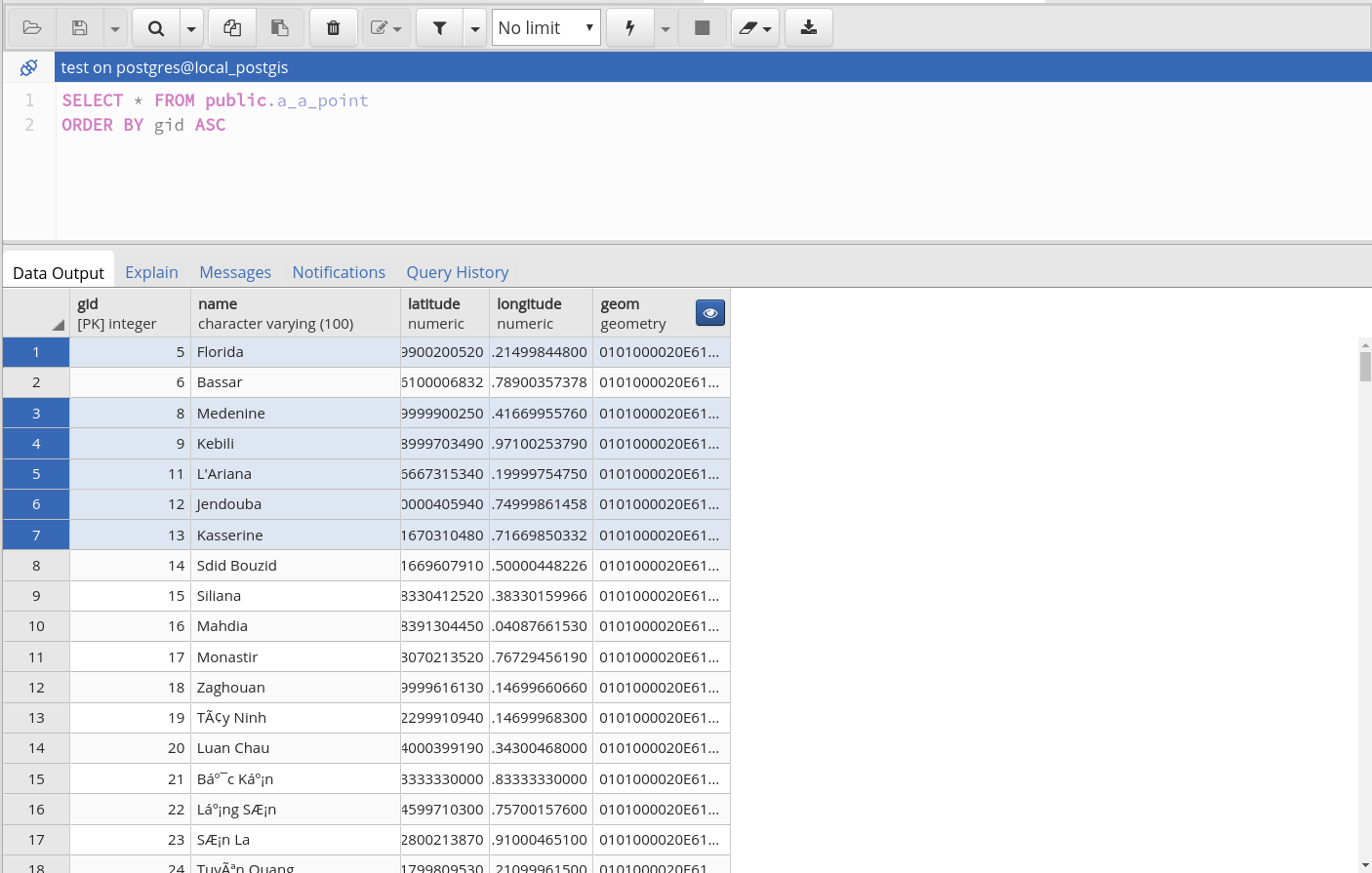

>>>>>>> - Add cell button and column header button in datagrid for
>>>>>>> geometry and geography type data. [screenshot 1]

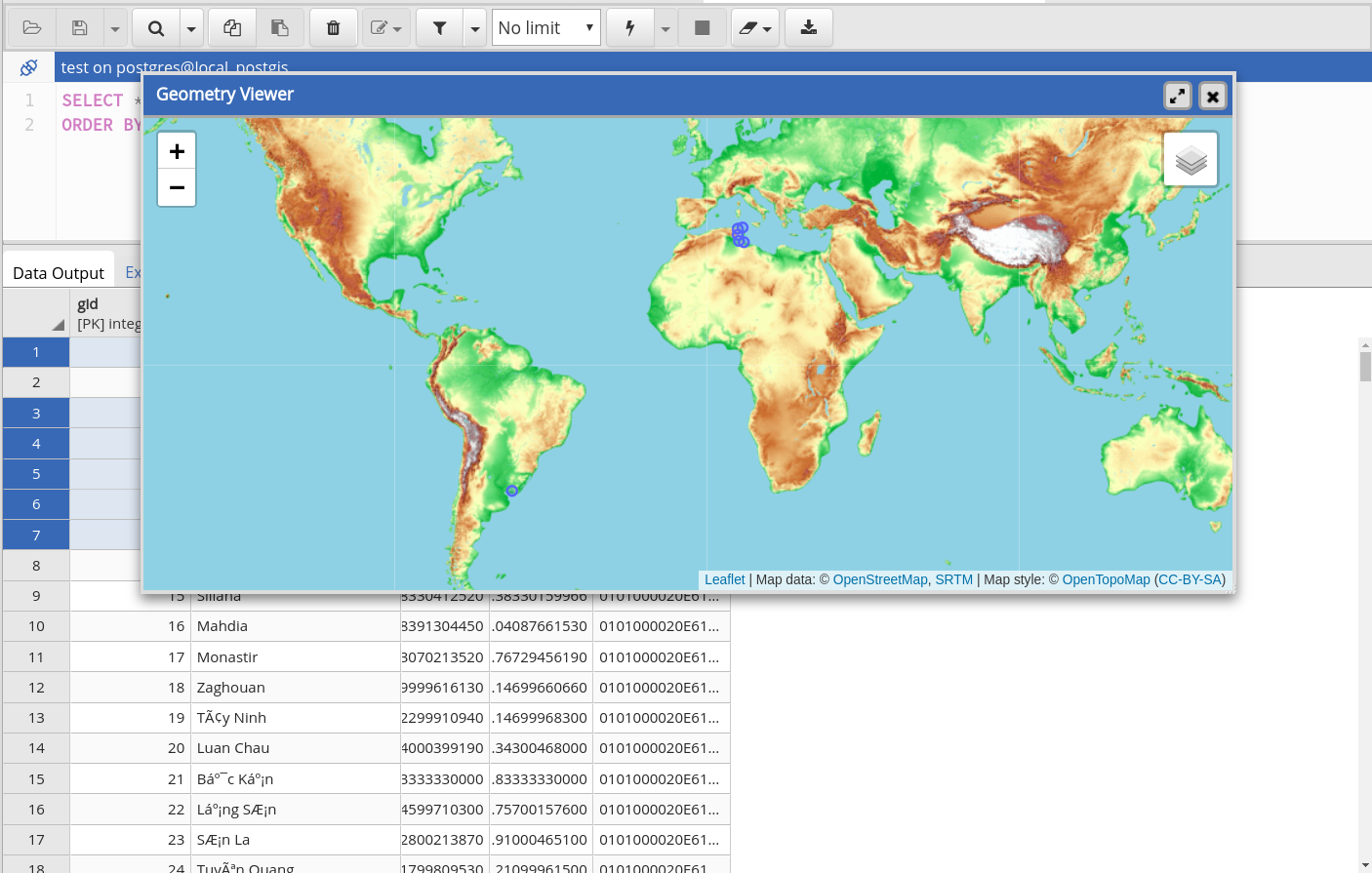

>>>>>>> - When user clicks the 'view' button, it parses the data and
>>>>>>> opens a map to show the geometry. [screenshot 2, 3, 4]

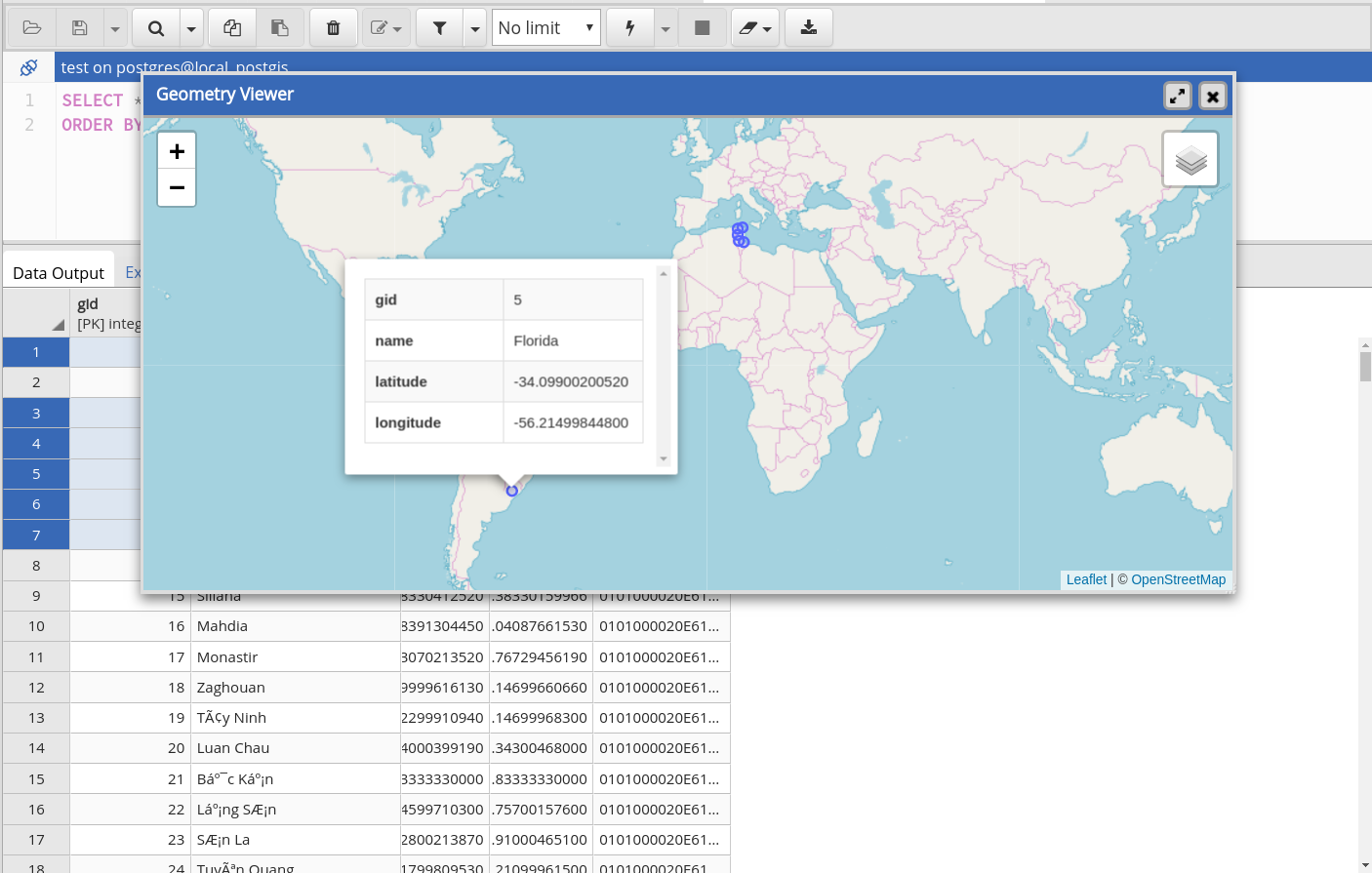

>>>>>>> - When user clicks the geometry in the map, it shows the
>>>>>>> properties. [screenshot 5]
>>>>>>>
>>>>>>> I have created unit test for this. I have also created a test
>>>>>>> database[1] including geometries of different types to run test manually.
>>>>>>> Please review it. Thank you.
>>>>>>>
>>>>>>> Regards,
>>>>>>> Xuri Gong
>>>>>>>
>>>>>>> [1]
>>>>>>> https://drive.google.com/open?id=1NHWW4WPli7kxpuGaDFGVFLDXdc2D20wp
>>>>>>>
>>>>>>
>>>>>
>>>>>
>>>>> --
>>>>> Dave Page
>>>>> Blog: http://pgsnake.blogspot.com
>>>>> Twitter: @pgsnake
>>>>>
>>>>> EnterpriseDB UK: http://www.enterprisedb.com
>>>>> The Enterprise PostgreSQL Company
>>>>>
>>>>
>>>
>>>
>>> --
>>> Dave Page
>>> Blog: http://pgsnake.blogspot.com
>>> Twitter: @pgsnake
>>>
>>> EnterpriseDB UK: http://www.enterprisedb.com
>>> The Enterprise PostgreSQL Company
>>>
>>
>>
